Web

This functionality is not yet fully developed, yet we encourage you to try it out.

Preparing existing code

We will use the example created in previous page (tutorial). We will have to modify the views/weather_gui.py. First of all we will rewrite the WeatherGUI class, and split it into two classes. We will create Weather class that inherits from titania.common.titania_tab.TitaniaPlotTab, and define it’s make_plot, get_title methods, like so:

from panels.weather_panel import WeatherControlPanel
from data.weather_data import  WeatherData, WeatherDataCached
from plots.weather_plot import WeatherPlot
from titania.common.titania_tab import TitaniaPlotTab

class Weather(TitaniaPlotTab):
    def __init__(self, parent=None):
        self.parent = parent
        super().__init__(data=WeatherDataCached())

    def make_plot(self):
        return WeatherPlot(parent=self.parent, view=self)

    def get_title(self):
        return "Weather Plot"

The class above is base class for both GUI and Web views. Then we use this class along with titania.QtGUI.base_tab.QtBaseLayoutTab, to create GUI view. We defince create_control_panel method inside.

from titania.QtGUI.base_tab import QtBaseLayoutTab

class WeatherGUI(Weather, QtBaseLayoutTab):
    def __init__(self, parent=None):
        QtBaseLayoutTab.__init__(self, parent=parent)
        Weather.__init__(self, parent=parent)

    def create_control_panel(self):
        return WeatherControlPanel(widget=self)

Making new Web interface

As of time of writing this, the minimal requirement for a class that enables plotting in web interface is as follows:

• inherit from titania.common.interface_tab.WebTab or titania.web.base_tab.QtTitaniaWebTab,

• the member of the class self.plot.figure should be a matplotlib’s figure

So we can use titania.web.base_tab.QtTitaniaWebTab, like so:

class WeatherWeb(Weather, QtTitaniaWebTab):
    def __init__(self, parent=None):
        self.parent = parent
        Weather.__init__(self, parent=parent)
        QtTitaniaWebTab.__init__(self)

The extension of the titania.web.base_tab.QtTitaniaWebTab provides tight control over the process of creating the view. But if you don’t need advanced options you can just use titania.web.base_tab.WebMetaclass You can just define it using metaclass:

from titania.web.base_tab import WebMetaclass

class WeatherWeb(Weather, metaclass=WebMetaclass):
    pass

Both of the methods are valid, and in fact both boil down to one requirement for plotting the

Putting it all together

And that’s it, your weather_gui.py should like this:

from panels.weather_panel import WeatherControlPanel
from data.weather_data import  WeatherData, WeatherDataCached
from plots.weather_plot import WeatherPlot
from titania.common.titania_tab import TitaniaPlotTab
from titania.QtGUI.base_tab import QtBaseLayoutTab
from titania.web.base_tab import WebMetaclass

class Weather(TitaniaPlotTab):
    def __init__(self, parent=None):
        self.parent = parent
        super().__init__(data=WeatherDataCached())

    def make_plot(self):
        return WeatherPlot(parent=self.parent, view=self)

    def get_title(self):
        return "Weather Plot"

    def create_control_panel(self):
        return WeatherControlPanel(widget=self)

class WeatherGUI(Weather, QtBaseLayoutTab):
    def __init__(self, parent=None):
        QtBaseLayoutTab.__init__(self, parent=parent)
        Weather.__init__(self, parent=parent)

    def create_control_panel(self):
        return WeatherControlPanel(widget=self)

class WeatherWeb(Weather, metaclass=WebMetaclass):
    pass

Setting up the web interface

You will need additionally to create a seperate config file for the web interface, in config_web.py:

from views.weather_gui import WeatherWeb
config = {
    "ExampleTab": [WeatherWeb],
}

And seperate main file main_web.py

import config_web
from titania.web.main_window import MainWindow

if __name__ == '__main__':
    main_window = MainWindow(tab_config=config_web.config)
    main_window.run()

Your projects directory should look like this:

ProjectName/
-- data/
-- panels/
-- plots/
-- views/
-- config.py
-- config_web.py
-- main.py
-- main_web.py
-- __init__.py_

Running

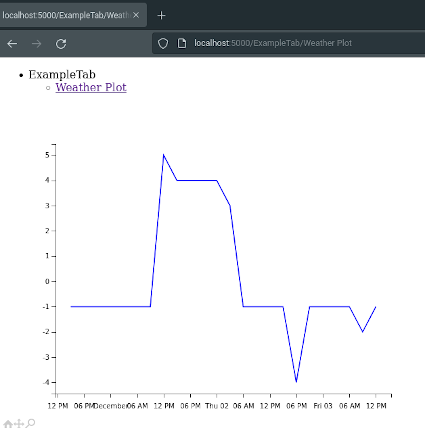

Now you can simply run python main_web.py The interface should work under following address: http://localhost:5000, you can open with web browser. (if it doesnt work check the programs output to see correct link if this one doesn’t work) After clicking in the link inside the website you should see something like this:
